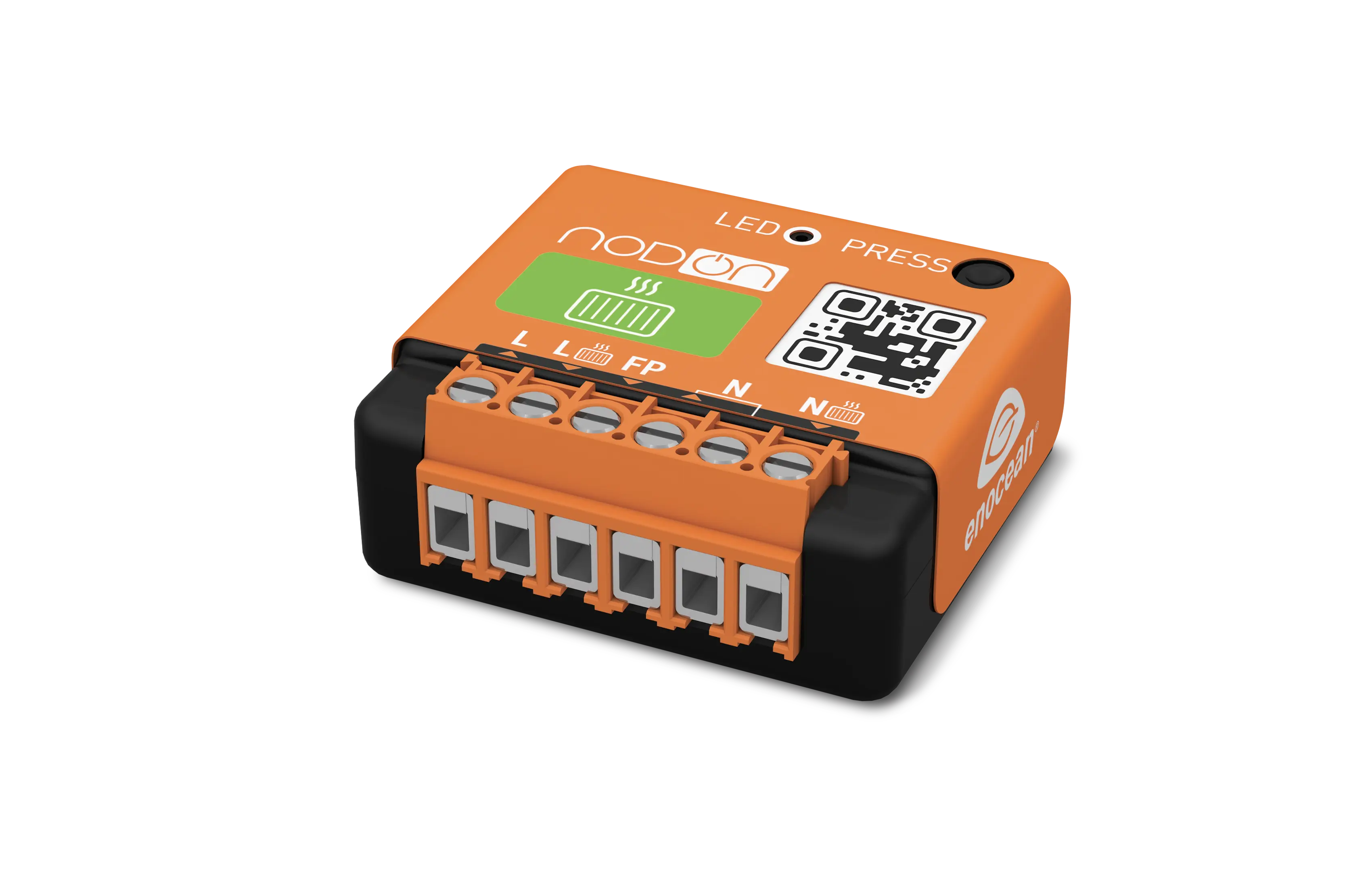

EnOcean Pilot Wire Heating Module
Smart management of the electric pilot wire heaters
EnOcean Pilot Wire Heating Module is easy to install on all electric heaters with pilot wire to turn it connected and smart. It is EnOcean 3.0 certified and can be controlled with a controller, a door/window opening or motion sensor, or a compatible home automation gateway. Thanks to its 6 modes (Comfort, Comfort -1°C, Comfort -2°C, Eco, No Frost, Stop), heating management becomes smart to make energy savings and bring more comfort to the user.
6 modes
The Pilot Wire Heating Module has 6 modes: Comfort, Comfort -1°C, Comfort -2°C, Eco, No Frost and Stop for a local or automatic control
Metering
The module measures instant power and cumulated energy, to monitor the heater consumption and help to make energy savings
Easy installation

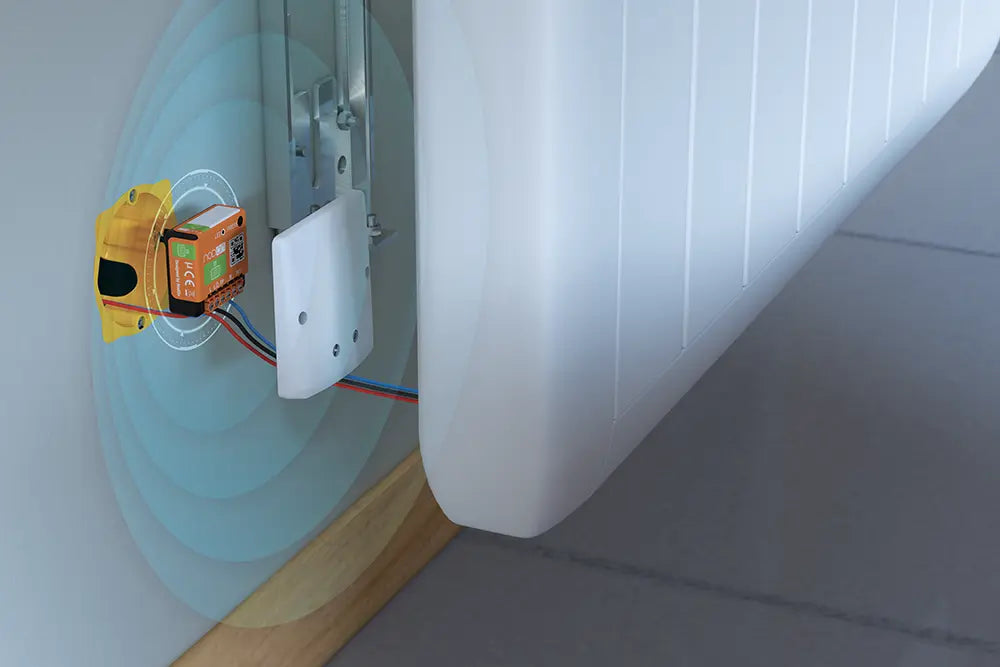

This Pilot Wire Heating Module is easy to install behind the electric heater grommet
Ultra low profile
A concentrate of technology and features, in less than 17mm thickness
Remote commissioning
Using the latest EnOcean specifications, NodOn Module can be fully commissioned without any physical intervention from the installer
With my Pilot Wire Heating Module, I can :
Local control
Scenario
Launch scenarios related to heating modes, according to the hour or to the day of the week
Motion
Regulate the heating according to the presence or the absence in a room
Energy savings
Centralization
Technical specifications
Power supply: 230V AC ~ 50Hz
Consumption: <1W
Heater maximum power: 3680 W
Metering of Instant power (W) and cumulated Energy (Wh) – (compatible home automation gateway needed)
Radio frequency range: 868.0 to 868.6 Mhz
RF power max: +10dBm
Range: up to 30m indoor
Operational temperature: -10°C to 40°C
Protection rating: IP 30
Pairing: up to 22 controllers
EEP (EnOcean Profile): D2-01-0C
Dimensions: 41 mm (l) x 44 mm (L) x 16.9 mm (h)
Certifications and standards
Europe
EN 60730
EN 300220-2 V3.1.1
EN 301489-01 V2.1.1 – EN 301489-03 V2.1.1
EN 62479:2010
2012/19/EC WEEE Directive
2011/65/EU
2014/53/EU

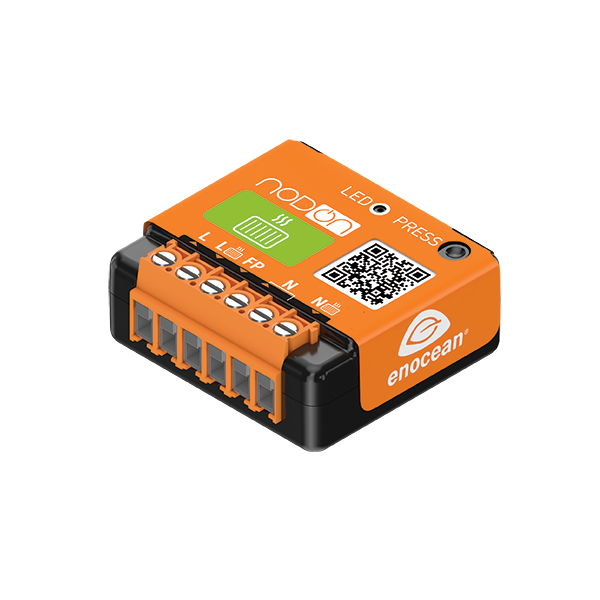

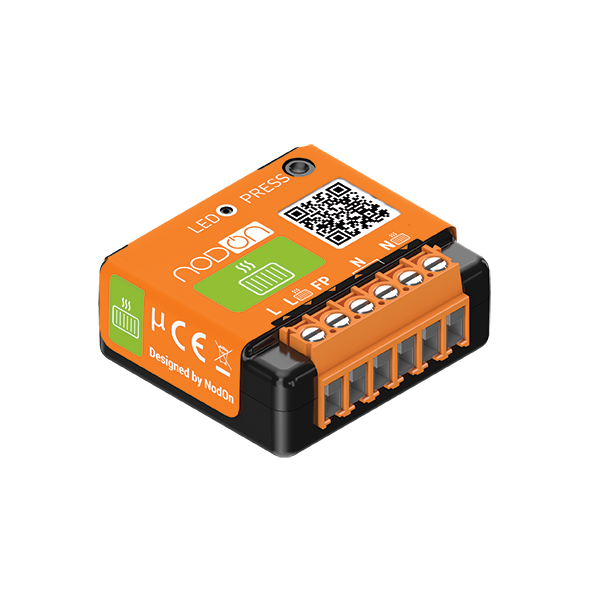

SIN-2-FP-01
Pilot Wire Heating Module 868MHz
Compatible Gateways
Gateway with a dongle
